The Fuel EX 9.8 XT is an all-around trail bike that blends the light, smooth ride of a carbon frame with upgraded parts made for hard rides.
The Fuel EX 9.8 XT is an all-around trail bike that blends the light, smooth ride of a carbon frame with upgraded parts made for hard rides.
Trek

Trek Fuel EX 9.8 XT Trail Bike In Deep Smoke

£5,550.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Trek Fuel EX 9.8 XT Trail Bike In Mulsanne Blue
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

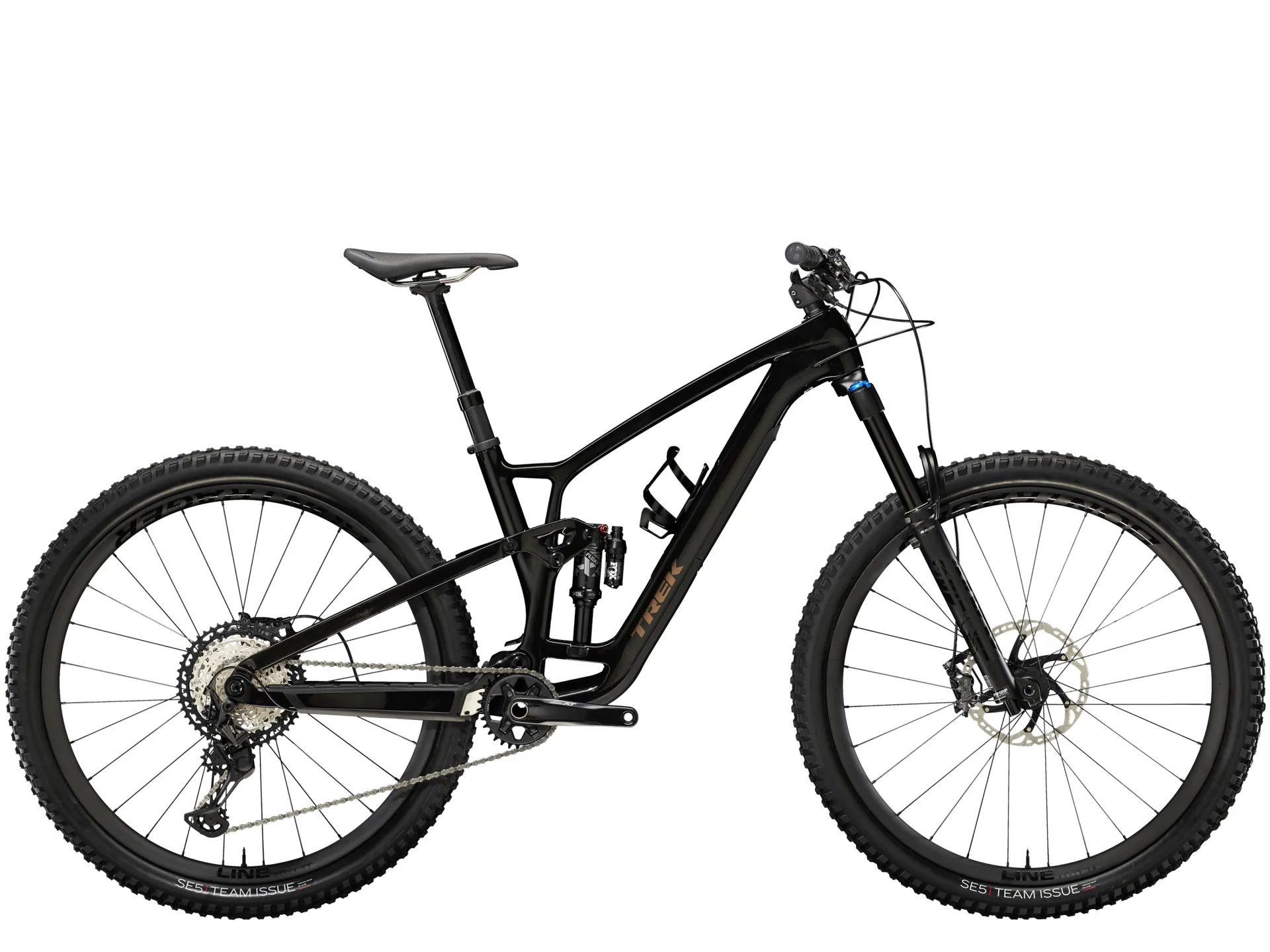

Trek Fuel EX 9.8 XT Trail Bike In Deep Smoke

Season:2023

Brand:Trek

Code:36358BLK

The Fuel EX 9.8 XT is an all-around trail bike that blends the light, smooth ride of a carbon frame with upgraded parts made for hard rides.

Decked out with 150 mm of front and 140 mm rear FOX Performance suspension, you'll be ready to float through the tough stuff, while carbon wheels keep you tracking through rowdy terrain. A Shimano XT drivetrain tops things off for precise shifting for power on descents and relief on long climbs.

You're chasing long flowy and technical descents, and want to pedal back to the top for more, lap after lap. You want the vibration-damping benefits of a carbon frame and carbon wheels, plus upgraded suspension that smooths out the rough and rowdy.

A light and stiff carbon frame with a full FOX Performance suspension package that smooths out rowdy rock gardens and root latices. Plus, carbon wheels that keep your set-up light, while a Shimano XT drivetrain for smooth shifting and brake modulation. Finally, you'll find adjustable geometry and in-frame storage for keeping your set-up dialled just for you.

The Fuel EX 9.8 is the culmination of years of trail riding and progression, with longer front end geometry for tackling steeper and hairier descents, and a steeper seat tube to keep you perched on climbs. It's equipped with the cherry-picked components you want, like upgraded suspension, carbon wheels and a Shimano XT drivetrain.

Features:
  • You'll get the light weight and vibration-damping benefits of a full carbon frame, and geometry built to handle anything
  • It comes with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy
  • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
  • We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
  • You get the precise shifting and brake modulation of a Shimano XT drivetrain, plus the simple reliability of a threaded bottom bracket
Technical Information
  • Frameset
  • Frame
    OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
  • Fork
    Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Shock
    Fox Performance Float X, 2-position damper, 185 mm x 55 mm
  • Max compatible fork travel
    160mm
  • Wheels
  • Wheel front
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • *Tyre
  • Size: XS , S
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50"
  • Size: S , M , ML , L , XL
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
  • Drivetrain
  • Shifter
    Shimano XT M8100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage
  • Crank
    Shimano XT M8120, 30T, 55 mm chain line, 170 mm length
  • Bottom bracket
    Shimano BB-MT501 BSA
  • Cassette
    Shimano XT M8100, 10-51, 12-speed
  • *Chain
  • Size: XS , S , M , ML , L , XL
    Shimano XT M8100, 12-speed
  • Size: XS , S , M , ML , L , XL
    Shimano Ultegra/XT M8100, 12-speed
  • Max. chainring size
    1x: 34T round, 32T oval, min 28T
  • Components
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • *Seatpost
  • Size: XS , S
    Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Size: M , ML
    Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Size: L
    Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Size: XL
    Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
  • *Handlebar/stem (integrated)
  • Size: XS , S
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
  • Size: M , ML , L , XL
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Head set
    Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Brake
    Shimano XT M8120 4-piston hydraulic disc
  • *Brake rotor
  • Size: XS , S , M , ML , L , XL
    Shimano RT76, 6-bolt, 180 mm
  • Size: M , ML , L , XL
    Shimano RT76, 6-bolt, 203 mm
  • Rotor size
    Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
  • Accessories
  • Bag
    Bontrager BITS Internal Frame Storage Bag
  • Weight
  • Weight
    M – 14.33 kg/31.6 lb (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
