The Fuel EX 9.9 XX1 AXS is a performance-first trail bike built for riders who have an appreciation for the finest things in life.
The Fuel EX 9.9 XX1 AXS is a performance-first trail bike built for riders who have an appreciation for the finest things in life.
Trek

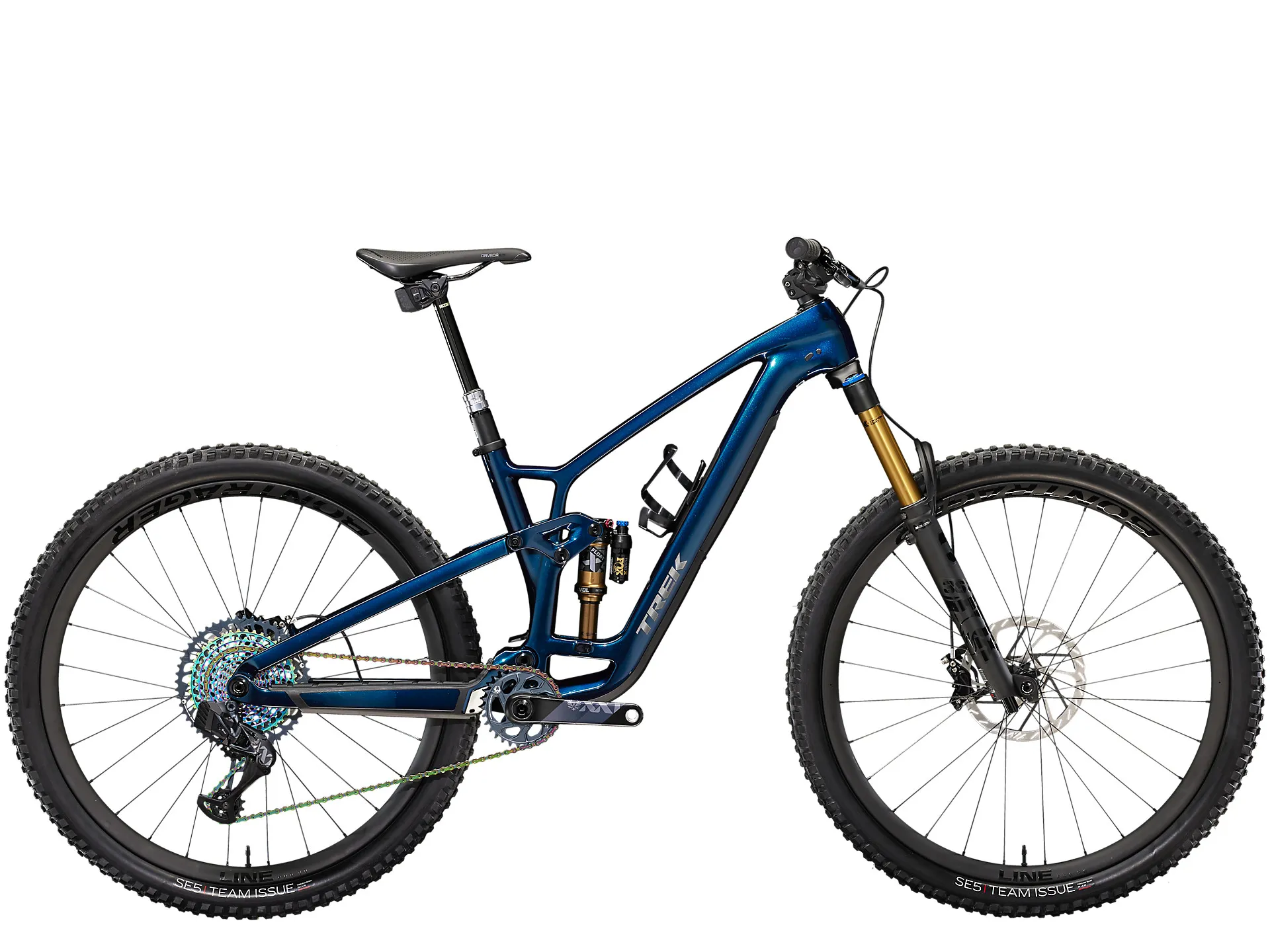

Trek Fuel EX 9.9 XX1 AXS Mountain Bike in Blue

£11,800.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Fuel EX 9.9 XX1 AXS Mountain Bike in Blue

Season:2023

Brand:Trek

Code:36956BLU

The Fuel EX 9.9 XX1 AXS is a performance-first trail bike built for riders who have an appreciation for the finest things in life.

It combines a cream of the crop carbon frame with top-tier components, from the carbon fibre wheels all the way up to the 150 mm Kashima-coated FOX Factory fork and fully wireless SRAM XX1 drivetrain. It's a bike that rules the mountain and doesn't hesitate to lay claim to its domain, ripping up rock gardens, blasting berms and rocketing back to the top to conquer it all once again.
Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
  • Fork
    Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Shock
    Fox Factory Float X, 2-position damper, 185 mm x 55 mm
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
  • Tyre
  • Size: XS , S
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50"
  • Size: S , M , ML , L , XL
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Shifter
    SRAM Eagle AXS, wireless, 12 speed
  • Rear derailleur
    SRAM XX1 Eagle AXS
  • Crank
    SRAM XX1 Eagle, DUB, 30T alloy ring, 55 mm chainline, 170 mm length
  • Bottom bracket
    SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette
    SRAM Eagle XG-1299, 10-52, 12-speed
  • Chain
    SRAM XX1 Eagle, 12-speed
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
  • Size: XS , S
    RockShox Reverb AXS, 100 mm travel, wireless, 34.9mm, 340 mm length
  • Size: M , ML
    RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
  • Size: L , XL
    RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
  • Integrated Bar Stem
  • Size: XS , S
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35mm stem length
  • Size: M , ML , L , XL
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Head set
    Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Brake rotor
  • Size: XS , S , M , ML , L , XL
    SRAM HS2, 6-bolt, 180 mm
  • Size: M , ML , L , XL
    SRAM 6-bolt, 200 mm
  • Brake Set
    SRAM Code RSC hydraulic disc
