The Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth and quiet, and holds its own when you pick a line.
The Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth and quiet, and holds its own when you pick a line.
Trek

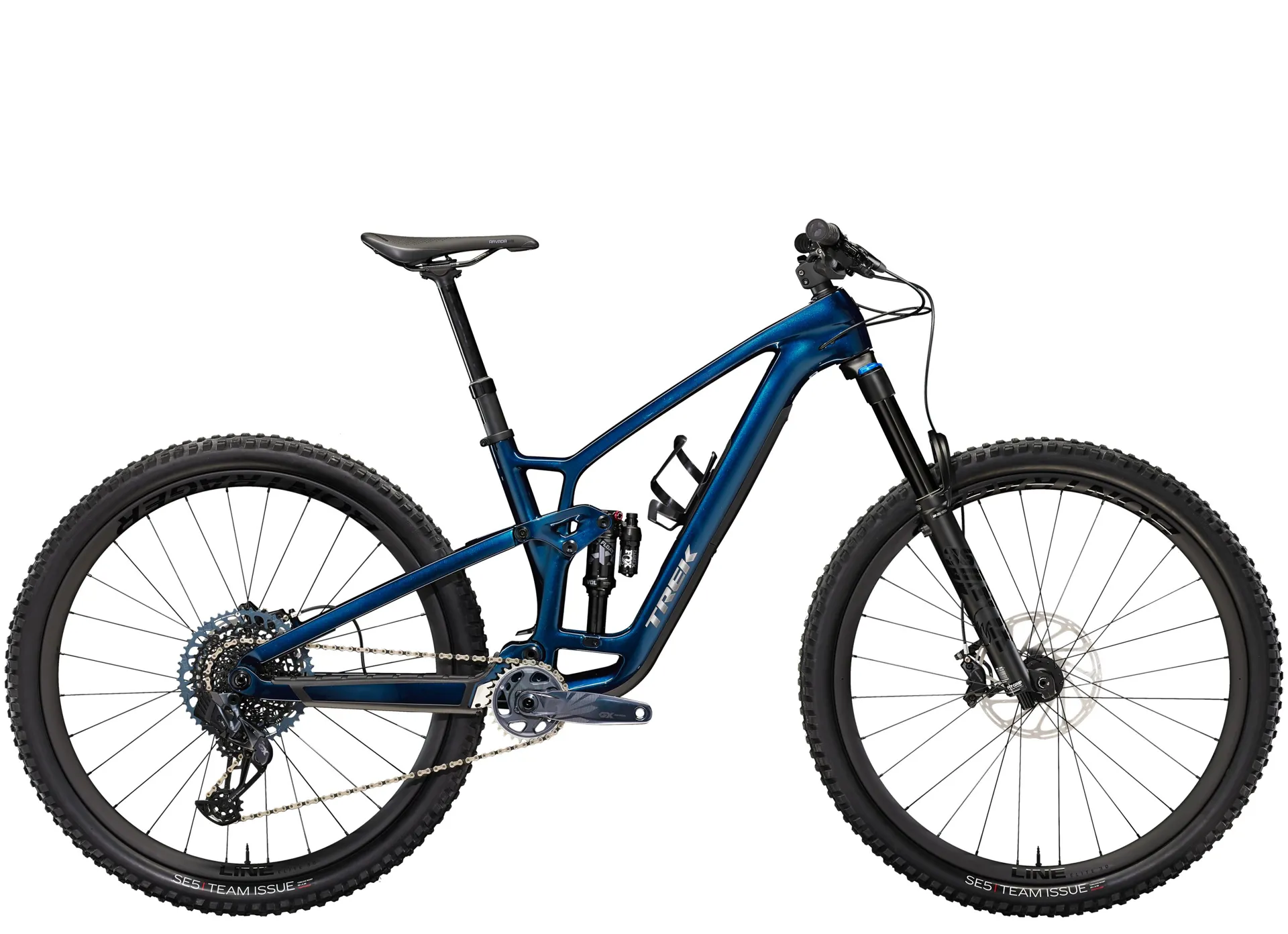

Trek Fuel EX 9.8 GX AXS Mountain Bike In Mulsanne Blue

£6,475.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Trek Fuel EX 9.8 GX AXS Mountain Bike In Deep Smoke
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Trek Fuel EX 9.8 GX AXS Mountain Bike In Mulsanne Blue

Season:2023

Brand:Trek

Code:36953BLU

The Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth and quiet, and holds its own when you pick a line.

It's loaded with the latest tech like a wireless SRAM GX AXS drivetrain that's super clean-looking and customisable. 150 mm front and 140 mm rear suspension keep you in control on the roughest trails and it's all topped off with carbon Bontrager wheels with a quick-engaging hub.

You want a full suspension ride that can handle anything you throw its way. You want the vibration-damping benefits of a carbon frame and wheels and rock-gobbling premium suspension, and appreciate when you can keep your set-up clean and minimalist with wireless 12-speed shifting.

A light-and-stiff carbon frame with a full FOX Performance suspension package that turns chunky rock gardens into smooth sailing. Carbon wheels that keep weight down while offering stiff and reliable tracking. Plus, the wireless shifting of SRAM GX AXS, and tubeless hoops and tyres so you can spend less time fixing flats. Finally, you'll find adjustable geometry and in-frame storage for keeping your set-up dialled just for you.

The Fuel EX 9.8 is the evolution of years of trail riding, with longer front geometry for taking on steep descents, and a steeper seat tube for hammering back up to do it again. Its carbon frame keeps things light, and SRAM GX AXS shifting takes things up a notch for those who want the latest tech.

Features:
  • Its lightweight carbon frame and progressive geometry are built to tackle steep and gnarly descents and punchy climbs alike
  • It comes with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy
  • You get the latest technology in SRAM's workhorse GX group set, with wireless AXS shifting
  • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
  • We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
Technical Information
  • Frameset
  • Frame
    OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
  • Fork
    Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Shock
    Fox Performance Float X, 2-position damper, 185 mm x 55 mm
  • Max compatible fork travel
    160mm
  • Wheels
  • Wheel front
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • *Tyre
  • Size: XS , S
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50"
  • Size: S , M , ML , L , XL
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Sealant
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
  • E-system
  • Battery
    SRAM eTap battery pack (with charger)
  • Drivetrain
  • Shifter
    SRAM GX Eagle AXS, 12 speed
  • Rear derailleur
    SRAM GX Eagle AXS
  • Crank
    SRAM GX Eagle, DUB MTB Wide, 30T, 55 mm chainline, 170 length
  • Bottom bracket
    SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette
    SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain
    SRAM GX Eagle, 12-speed
  • Max. chainring size
    1x: 34T round, 32T oval, min 28T
  • Components
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • *Seatpost
  • Size: XS , S
    Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Size: M , ML
    Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Size: L
    Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Size: XL
    Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
  • *Handlebar/stem (integrated)
  • Size: XS , S
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
  • Size: M , ML , L , XL
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Head set
    Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Brake
    SRAM Code R 4-piston hydraulic disc
  • *Brake rotor
  • Size: XS , S , M , ML , L , XL
    SRAM CentreLine, 6-bolt, round-edge, 180 mm
  • Size: M , ML , L , XL
    SRAM CentreLine, 6-bolt, round edge, 200 mm
  • Rotor size
    Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
  • Accessories
  • Bag
    Bontrager BITS Internal Frame Storage Bag
  • Weight
  • Weight
    M – 14.15 kg/31.21 lb (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
